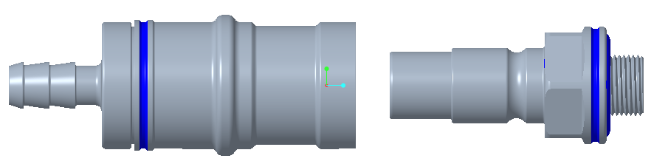

Quick Connector

It can realize quick connection and disconnection between various devices without leakage, improve efficiency, and reduce unnecessary workload caused by liquid drainage and injection.

Features

Customized Solutions Available

Non-leak Fluid

Excellent Sealing

High Tightness

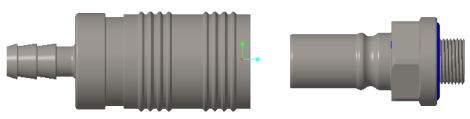

Quick Connector

Mechanical life＞1000 cycles of insertion and removal (with pressure less than 0.3MPa)
MaterialAL6061-T6
Surface treatment methodHard anodizing
Working temperature-40℃～+90℃
Working environment temperature -55℃~175℃ (non-freezing)
MediumEthylene glycol aqueous solution (0~50% concentration), pure water + corrosion inhibitor
Maximum working flow94.2 L/min
Working pressure≤1.6MPa
With press-in pressure≤0.3MPa
Leakage of plugging and unplugging-single pressurized (0.3MPa)≤0.09ml
Maximum insertion force≤160N
